HDPE Pipe Jointing Machine
Semi Automatic Butt Fusion Welding Machine
Avesta Exports is supplier and exporter of Semi Automatic Butt Fusion Welding Machine in Ahmedabad, Gujarat, India.
Model
BWS (Basic Welder Series)Key Features
Pair of High Grade Aluminium Pipe Clamps Mounted On Robust Ms Main Structure.
Compact & Lightweight Motorised Hand Liver Operated Hydraulic Unit with Separate Pressure Regulator for Drag & Joint
Knob to Switch Pressure Between Join to Drag & Drag to Joint.
Auto ON/OFF Motor with Hand Liver.
Electrically Operated Geared Drive Trimmer for Optimised Cutting Speed, Compact & Easy Locking Mechanism.
PTFE Coated Heating Plate with Microprocessor Base PID Digital Temperature Controller.
Standard Configuration

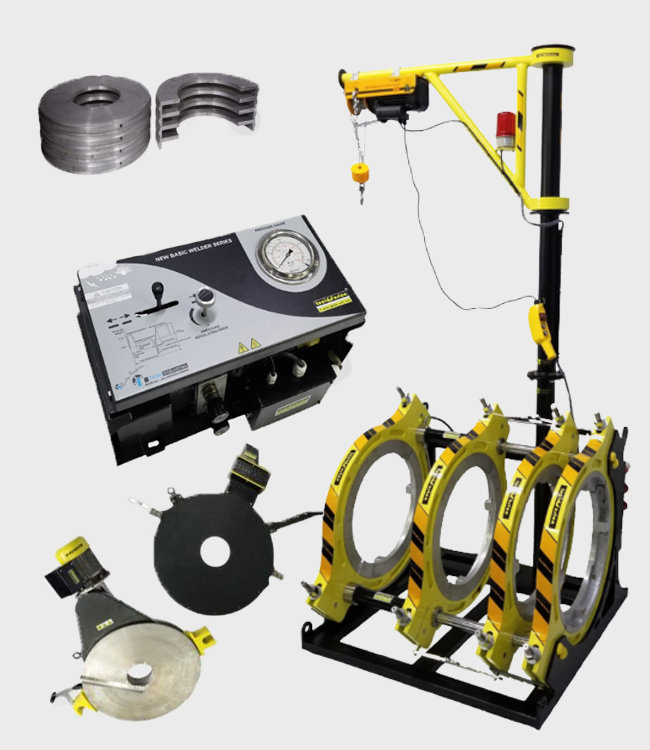

Basic Machine, Hydrulic Unit, Trimming Unit (Planer), Hot Plate, Trimmer & Hot Plate Carrying Case, Adapter Clamping Insert, Over Hade Wire Rope Hoist.Connection Type
AC (1Ø) 15 Amp Three Pin Top (Line +Neutral + Earth)Specification
| Model | BWS 160 | BWS 200 | BWS 250 | BWS 315 | BWS 450 |
|---|---|---|---|---|---|
| WORKING RANGE | 160-50MM | 200-63MM | 250-90MM | 315-90MM | 450-200MM |
| RECAMANDE TEMP | 180 C TO 220°C | 180 C TO 220°C | 180 C TO 220°C | 180 C TO 220°C | 180 C TO 220°C |
| TEMP. DEVIATION | ± 5°C. | ± 5°C. | ± 5°C. | ± 5°C. | ± 5°C. |
| SUPPLY VOLTAGE | AC 220V/50HZ | AC 220V/50HZ | AC 220V/50HZ | AC 220V/50HZ | AC 220V/50HZ |
| HEATER POWER | 750 WATT | 1000 WATT | 1150 WATT | 2000 WATT | 3300 WATT |
| GEN SET REQUIRED | 5KVA | 5KVA | 5KVA | 7.5KVA | 7.5KVA |
Model
BWS (Basic Welder Series)Key Features
Pair of High Grade Aluminium Pipe Clamps with Parallel Hydraulic Cylinder Mounted On Robus Ms Main Structure.
Compact & Lightweight Motorised Hand Liver Operated Hydraulic Unit with Separate Pressure Regulator for Drag & Joint
Knob to Switch Pressure Between Join to Drag & Drag to Joint.
Auto ON/OFF Motor with Hand Liver.
Electrically Operated Geared Drive Trimmer for Optimised Cutting Speed, Compact & Easy Locking Mechanism.
PTFE Coated Heating Plate with Microprocessor Base PID Digital Temperature Controller
Remote operated over hade wire rope hoist to lift mirror and trimmer.
Standard Configuration

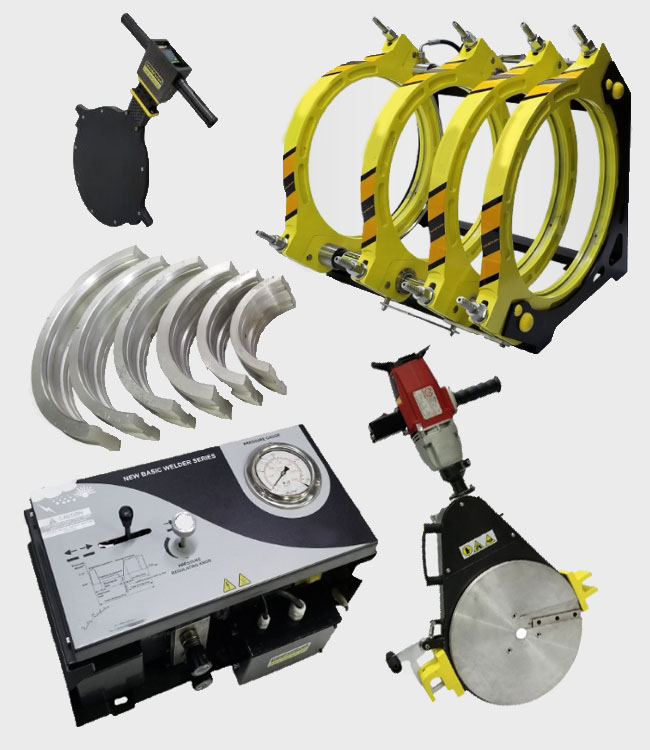

Basic Machine, Hydrulic Unit, Trimming Unit (Planer), Hot Plate, Trimmer & Hot Plate Carrying Case, Adapter Clamping Insert, Over Hade Wire Rope Hoist.Connection Type
AC (3Ø) 32 Amp Five Pin Top (3Line [R,Y,B] + Neutral + Earth)Specification
| Model | BWS630 | BWS800 |
|---|---|---|
| WORKING RANGE | 630-315MM | 800-450MM |
| RECAMANDE TEMP | 180 C TO 220°C | 180 C TO 220°C |
| TEMP. DEVIATION | ± 5°C. | ± 5°C. |
| SUPPLY VOLTAGE | AC 440V / 50HZ | AC 440V / 50HZ |
| HEATER POWER | 5000 WATT | 8500 WATT |
| GEN SET REQUIRED | 15KVA | 15KVA |
