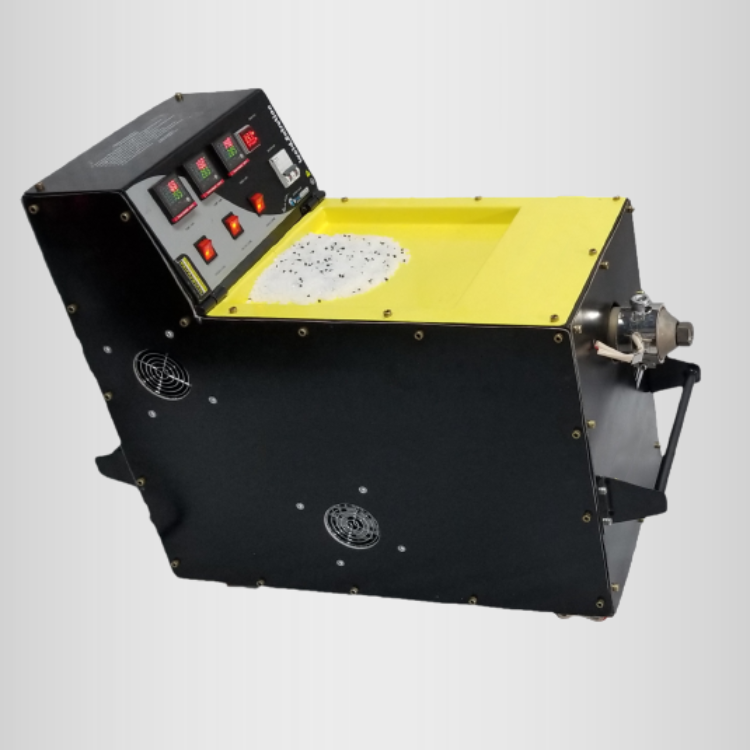

Extruder Welding Machine
Avesta Exports is supplier and exporter of Extruder Welding Machine in Ahmedabad, Gujarat, India.
Model
New 28AModel Name
Extruder WeldingConnection Type
AC (1Ø) 15 Amp Three Pin Top (Line +Neutral + Earth)Application
Use at Any Work Site & In Workshop for Fabrication & Maintenance of HDPE, PP, PPH & PVDF Tanks, Profile Products & Fitting for Water, Gas and Other Fluids.Key Features
Equipped with Nitrated Screw & Barrel Ensure Durable Long Life
Microprocessor Base Digital Temperature controller with Ampere Display
Input Voltage and Motor Load Ampere Display.
Especially Designed High Torque Compact Electrical Motor.
Over Load Protection Relay with Contactor for Motor.
On/Off lluminated Rocker Switch for Each Zone.
Start Stop Push Button with Indicator for Motor.
Aluminium Body Reduction Gear Box to Optimise Required Rotation.
Good Quality Insulated Heaters Along with Sensors.
Best in Class Sturdy and Compact Light Weight Structure.
Standard Base Wheel Along with Lifting Handles for Effortless Handling.
Powder Coated Structure for Maximum Protection in All Weather.
Specification
| ZONE | FEEDER ZONE | MELTING ZONE | NOZZLE ZONE |
|---|---|---|---|
| RECAMANDE TEMP. | 130°C TO 145°C | 250°C TO 160°C | 270°C TO 280°C |
| TEMP. DEVIATION | ± 5°C. | ± 5°C. | ± 5°C. |
| SUPPLY VOLTAGE | AC 220V/50HZ | ||
| GEN SET REQUIRED | 7.5 KVA | ||
| WEIGHT | 80 KG | ||
| OUTPUT ROD | 12 to 15 MM | ||
| OUTPUT PER HOUR | 3 to 4 KG | ||
