HDPE Pipe Jointing Machine

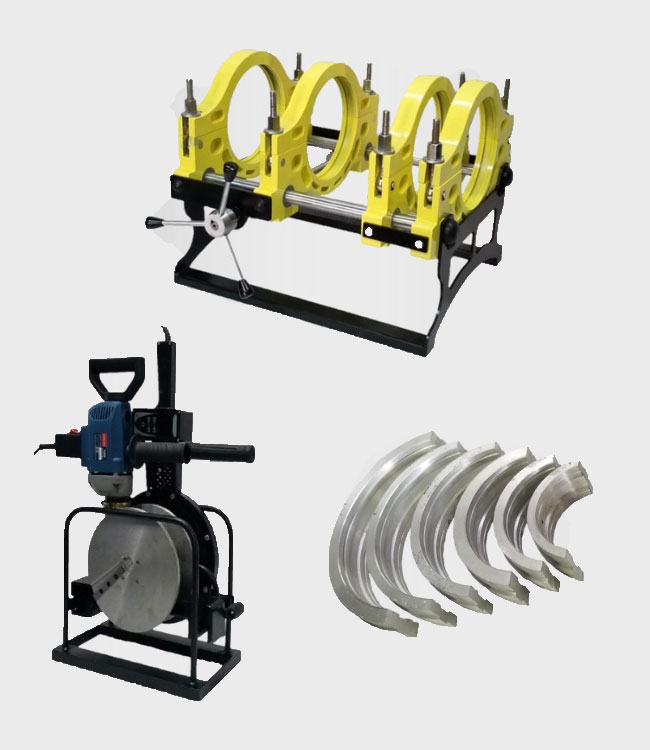

Mechanical Butt Fusion Pipe Welding Machine
Avesta Exports is supplier and exporter of Mechanical Butt Fusion Pipe Welding Machine in Ahmedabad, Gujarat, India.
Model
MWS (Mechanical Welder Series)Key Features
Pair of High Grade Aluminium Pipe Clamps Mounted On Robust Ms Main Structure.
Easy Operating & Nice Compact Designed to Work in Tranches and Narrow Places.
Excellent Rack& Pinion Designed to Obtain Required Pressure for Quality Butt Welding
Excellent Rack& Pinion Designed Make Possible to Remains in Same Position Where You Lock It
Electrically Operated Geared Drive Trimmer For Optimised Cutting Speed & Smooth Surface.
PTFE Coated Heating Plate with Microprocessor Base Digital Temperature Controller
Connection Type
AC (1Ø) 15 Amp Three Pin Top (Line +Neutral + Earth)Standard Configuration
Basic Machine, Hydraulic Unit, Trimming Unit (Planer), Hot Plate, Trimmer & Hot Plate Carrying Case, Adapter Clamping Insert.Specification
| Model | MWS 110 | MWS 160 | MWS 200 | MWS 250 |
|---|---|---|---|---|
| WORKING RANGE | 110-32MM | 160-50MM | 200-63MM | 250-90MM |
| HOT PLATE RANGE | 50°C TO 280°C | 50°C TO 280°C | 50°C TO 280°C | 50°C TO 280°C |
| RECAMANDE TEMP | 180 C TO 220°C | 180 C TO 220°C | 180 C TO 220°C | 180 C TO 220°C |
| TEMP. DEVIATION | ± 5°C. | ± 5°C. | ± 5°C. | ± 5°C. |
| SUPPLY VOLTAGE | AC 220V/50HZ | AC 220V/50HZ | AC 220V/50HZ | AC 220V/50HZ |
| HEATER POWER | 370 WATT | 750 WATT | 1000 WATT | 1150 WATT |
| TRIMMER POWER | 800 WATT | 800 WATT | 800 WATT | 800 WATT |
| STANDERED COMP. WEIGHT | 40 KG | 45 KG | 56 KG | 74 KG |
