HDPE Pipe Jointing Machine

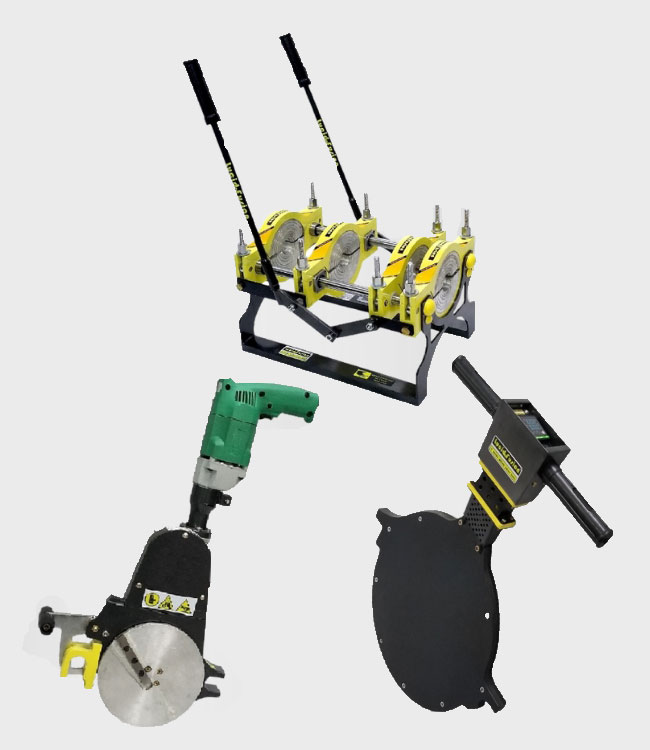

Manual Hand Push Butt Fusion Pipe Welding Machine
Avesta Exports is supplier and exporter of Manual Hand Push Butt Fusion Pipe Welding Machine in Ahmedabad, Gujarat, India.
Model
HPS (Hand Push Series)Key Features
Pair of High Grade Aluminium Pipe Clamps Mounted On Robust Ms Main Structure.
Easy Operating & Nice Compact Designed to Work in Tranches and Narrow Places.
Excellent Stand & Press Designed to Obtain Required Pressure for Quality Butt Welding.
Electrically Operated Geared Drive Trimmer for Optimised Cutting Speed & Smooth Surface.
PTFE Coated Heating Plate with Microprocessor Base PID Digital Temperature Controller.
Standard Configuration
Basic Manual Machine, Trimming Unit, Hot Plate, Trimmer & Hot Plate Carrying Case, Adapter Clamping Insert.Connection Type
AC (1Ø) 15 Amp Three Pin Top (Line +Neutral + Earth)Specification
| Model | HPS110 | HPS160 | HPS200 |
|---|---|---|---|
| WORKING RANGE | 110-32MM | 160-50MM | 200-63MM |
| HOT PLATE RANGE | 50°C TO 280°C | 50°C TO 280°C | 50°C TO 280°C |
| RECAMANDE TEMP | 180 C TO 220°C | 180 C TO 220°C | 180 C TO 220°C |
| TEMP. DEVIATION | ± 5°C. | ± 5°C. | ± 5°C. |
| SUPPLY VOLTAGE | AC 220V/50HZ | AC 220V/50HZ | AC 220V/50HZ |
| HEATER POWER | 370 WATT | 750 WATT | 1000 WATT |
| TRIMMER POWER | 800 WATT | 800 WATT | 800 WATT |
| STANDERED COMP. WEIGHT | 40 KG | 45 KG | 56 KG |
