Product Description
Intelligent Welder Series (IWS) are PLC Based Hydraulic Butt Fusion Welding Machine which comes with completely Well Equipped Superior Quality Components to Deliver Exceptionally Well Service Life ensuring Low Maintenance and Easy Operating System.
Application
The IWS is been designed to make the welding operations very simple for the worker at any construction building site, in pipe trenches, or in workshop.
Advance Features
- The IWS has four high grade aluminum casted main clamps supported by two hydraulic cylinders and hose pipes with quick couplings.

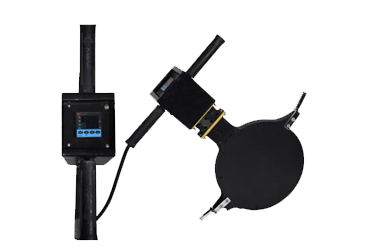

- The IWS heating plate comes with microprocessor based PID digital temperature controller for butt fusion welding of PE, PP, PPH & PVDF pipes & fittings.
- The IWS has digital pressure indication along with two separate pressure setting valve for drag & jointing which make use of machine very easy with single time setting for same size pipe.
- The IWS has built-in digital timers for soaking & bead-up with loud audible & visual signal.
- The IWS performs intelligently during mirroring process which provides automatic pressure drop from high to low & timer from bead up time to soaking time by buzzer signal with prefix time & pressure data in PLC.
Working Range with Various Model : 230V - 50/60Hz
| Description | ø Suitable Pipe Size | ø Inch | Dimension( ” )
(Machine Body) |
Kg |
|---|---|---|---|---|
| IWS 160 | 50 - 160 mm | 1½ - 6” | 28 x 15 x 16 | 34 |
| IWS 250 | 110 - 250 mm | 4 - 10” | 28 x 19 x 21 | 49 |
| IWS 315 | 160 - 315 mm | 6 - 12” | 29 x 21 x 23 | 65 |
| IWS 450 | 200 - 450 mm | 8 - 18” | 29 x 26 x 27 | 75 |
Standard Composition

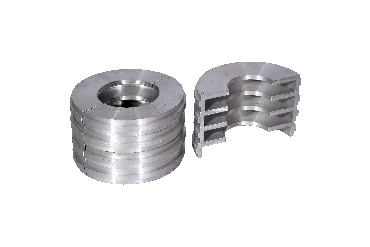

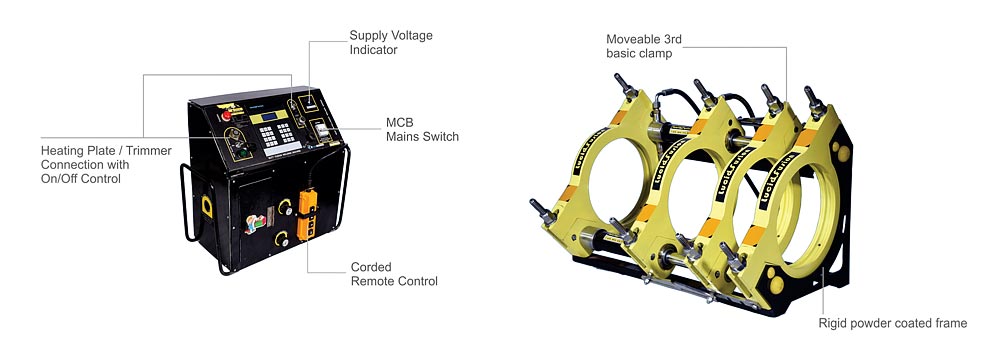

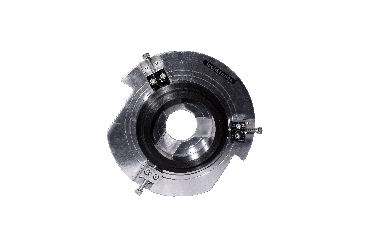

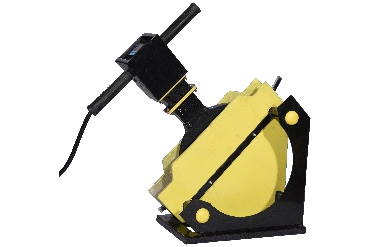

Main Machine Body, Heating Plate with DTC, Trimming Unit, PLC based Electro Hydraulic Unit, Trimmer / Heating Plate Stand, Stub end Device, Reduce Clamp Inserts.
Optional : Pipe Rollers
Company Video
Product Description
Intelligent Welder Series (IWS) are PLC Based Hydraulic Butt Fusion Welding Machine which comes with completely Well Equipped Superior Quality Components to deliver exceptionally Well Service Life ensuring Low Maintenance and Easy Operating System.
Application
The IWS is been designed to make the welding operations very simple for the worker at any construction building site, in pipe trenches, or in workshop.
Advance Features
- The IWS has four high grade aluminum casted main clamps supported by two hydraulic cylinders and hose pipes with quick couplings.

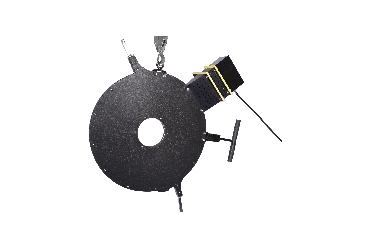

- The IWS heating plate comes with microprocessor based PID digital temperature controller for butt fusion welding of PE, PP, PPH & PVDF pipes & fittings.
- The IWS has digital pressure indication along with two separate pressure setting valve for drag & jointing which make use of machine very easy with single time setting for same size pipe.
- The IWS has built-in digital timers for soaking & bead-up with loud audible & visual signal.
- The IWS performs intelligently during mirroring process which provides automatic pressure drop from high to low & timer from bead up time to soaking time by buzzer signal with prefix time & pressure data in PLC.
Working Range with Various Model : 230V - 50/60Hz
| Description | ø Suitable Pipe Size | ø Inch | Dimension( ” )
(Machine Body) |
|---|---|---|---|
| IWS 630 | 315 - 630 mm | 12 - 24” | 46 x 50 x 42 |
| IWS 800 | 450 - 800 mm | 18 - 32” | -- |
| IWS 1000 | 630 - 1000 mm | 24 - 40” | -- |
| IWS 1200 | 630 - 1200 mm | 24 - 48” | -- |
Standard Composition

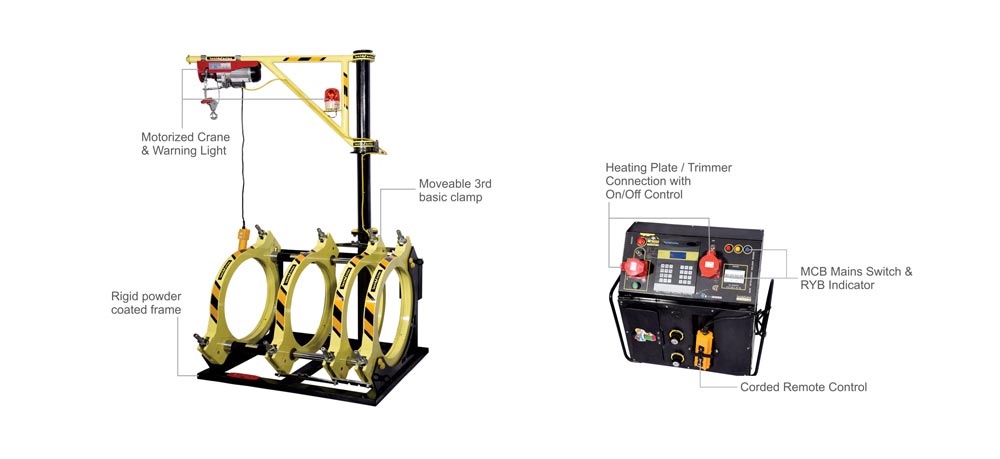

Main Machine Body, Heating Plate with DTC, Trimming Unit, PLC based Electro Hydraulic Unit, Heater / Trimmer Lifting Electrical Crane, Trimmer Stand, Heating Plate Stand, Stub end Device, Reduce Clamp Inserts.
Optional : Pipe Rollers
